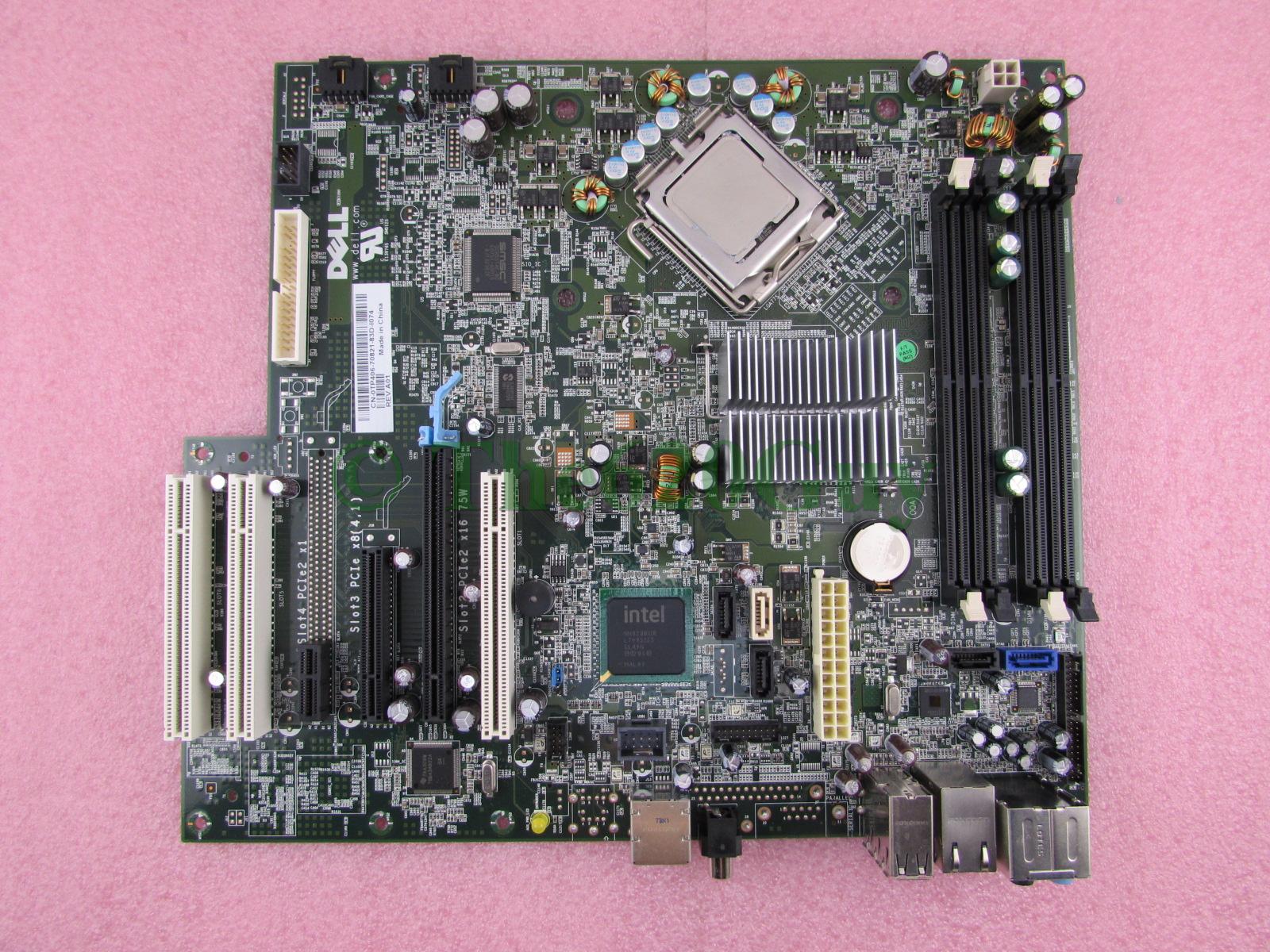

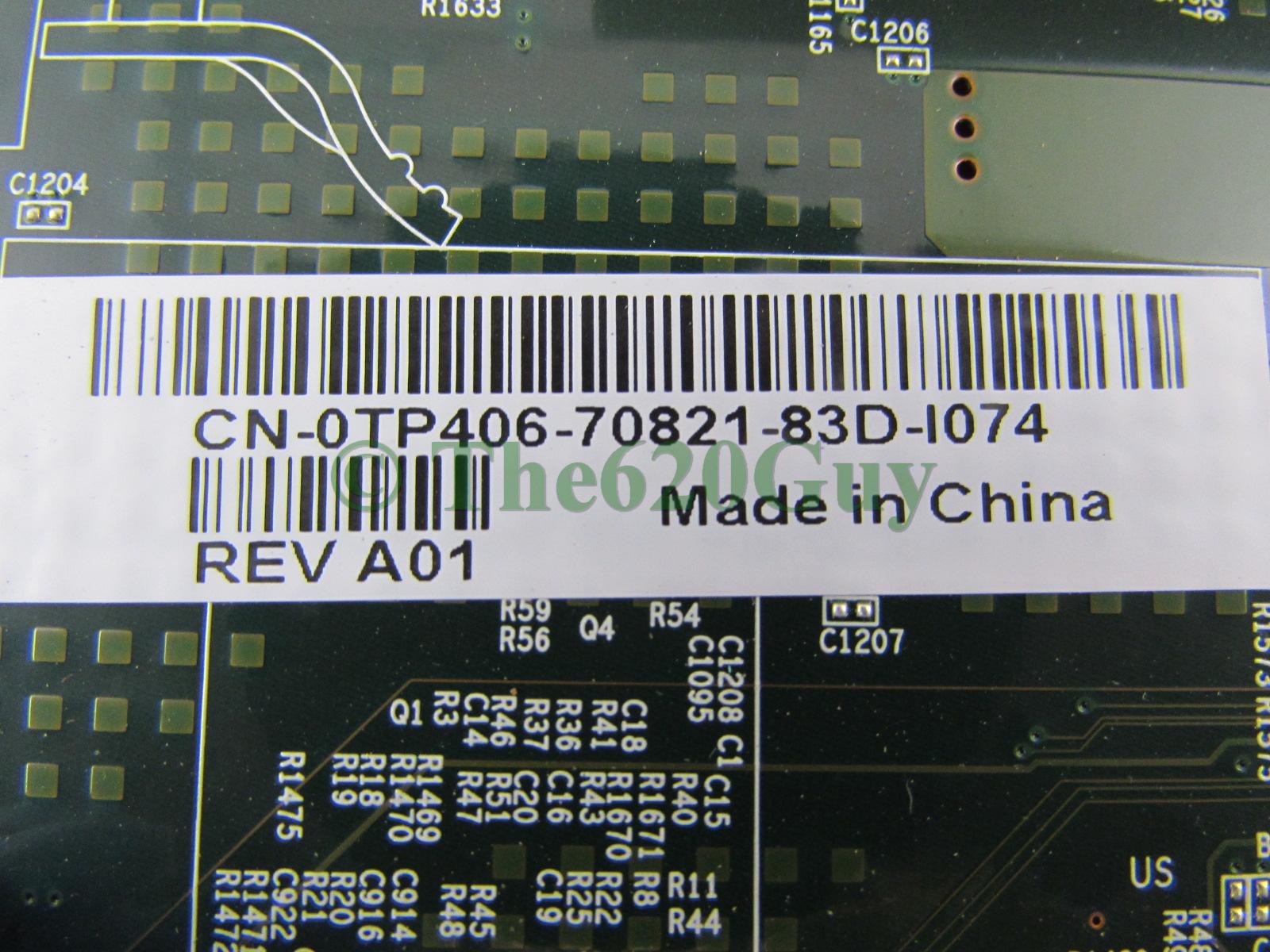

Dell XPS 420 Desktop X38 Motherboard TP406 + Core 2 Duo E8400 3Ghz CPU + HSF and I/O Plate
Download latest Drivers/Manual/BIOS
CPU
• Socket LGA775
• Intel Core 2 Quad Q6700, Q6600, Q8200, Q8300, Q9400, Q9450. Core 2 Extreme, Core 2 Duo
Chipset
• Intel X38 / ICH9R
Integrated Graphics
• None
Memory
• 4x 240-pin DDR2 DIMM Dual Channel DDR2 800/667 MHz non-ECC, unbuff (Max 8GB)
Expansion Slots
• 1x PCI Express x16 (2.0)
• 1x PCI Express x8
• 1x PCI Express x1
• 3x PCI
Audio
• SigmaTel – High Definition
Ethernet
• Intel Gigabit – 10/100/1000Mb/s

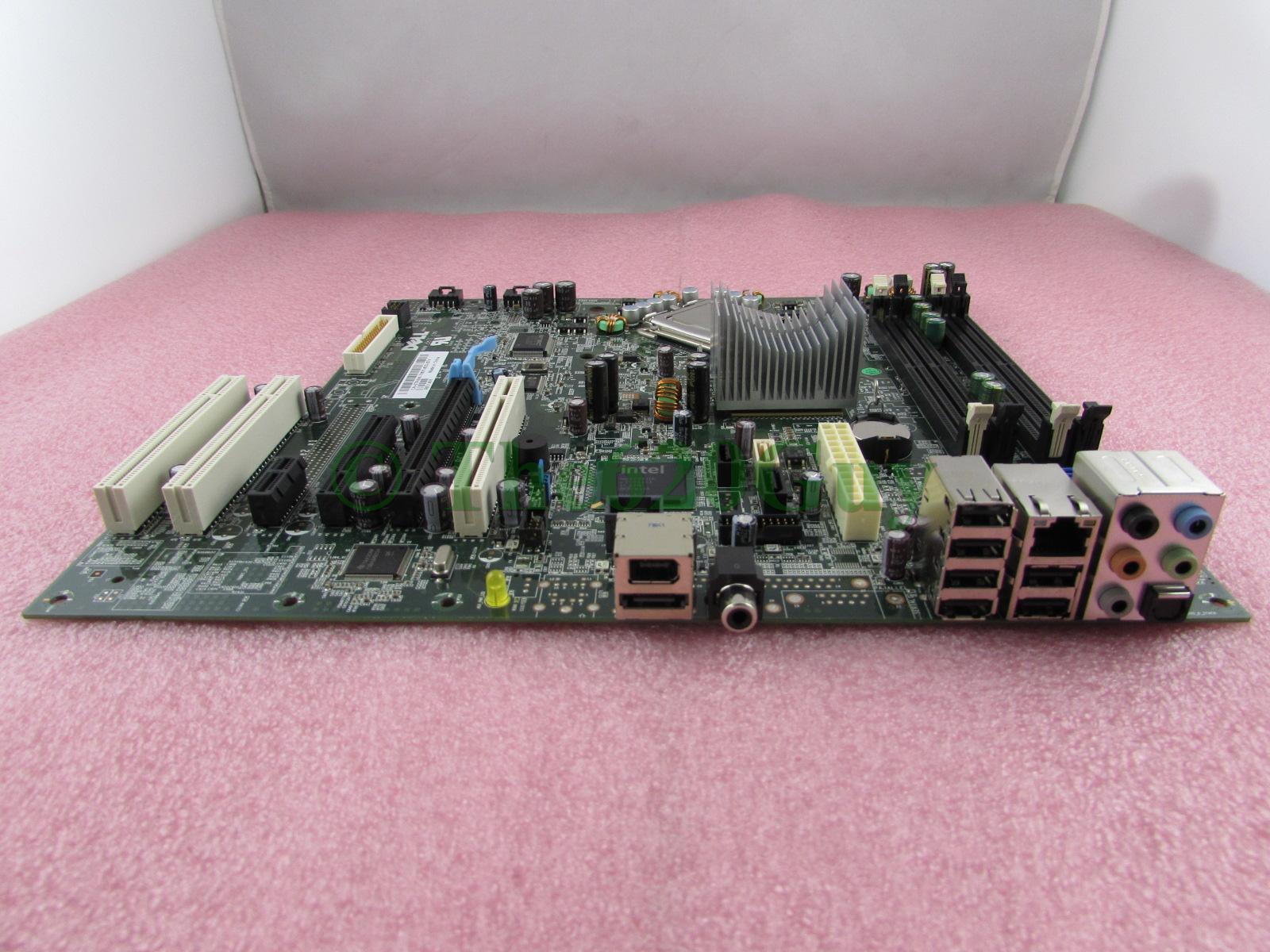

Rear Panel
• 1x RJ45 LAN Port
• 1x Audio I/O
• 1x IEEE 1394
• 6x USB 2.0 ports
• 1x eSATA
• 1x S/PDIF (RCA)
Internal
• 1x 4-pin CPU Fan connector
• 1x 4-pin ATX 12V Power connector
• 1x 24-pin ATX Power connector
• 1x Front Audio header
• 1x Front Panel header
• 1x IEEE 1394 header
• 1x Floppy connector
• 1x Chassis intrusion header
• 1x USB header
• 1x Clear CMOS jumper
• 1x Battery socket (3V)
Form Factor
• BTX
